UGC 10822 ( Draco Dwarf GX )
exposed at 25.05.2011

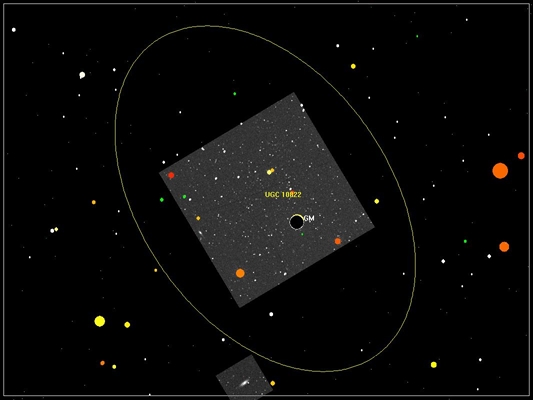

Guide 8 chart

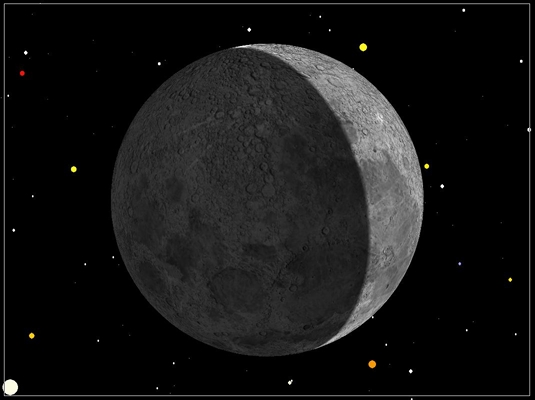

Guide 8 moon

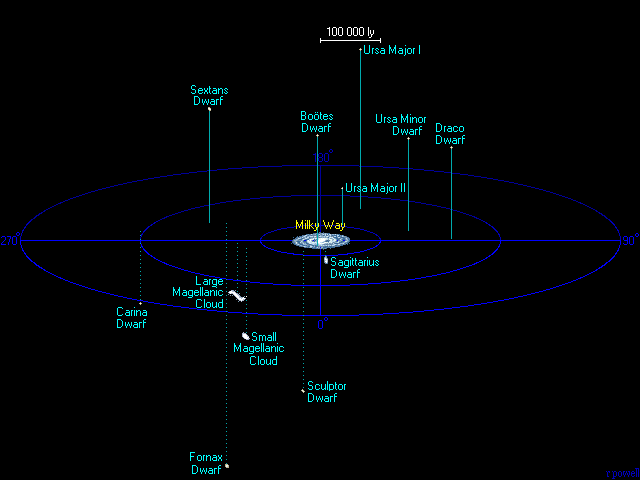

local group
picture from R.Powell
camera : Atik 383L+
lens: 12 " Newton f/4 (Baader RCC 1 corrector)
filter : Baader LRGB
exposure software : Astroart 5.0
guiding: OAG with Mintron MTV-12V6HC-EX and Guidemaster
exposure time :
LRGB
L : 6 x 10 min (2x2 bin)
R : 6 x 10 min (2x2 bin)
G : 6 x 10 min (2x2 bin)
B : 6 x 10 min (2x2 bin)
total: 4 hours
location : Home observatory Leopoldshöhe
image processing : Fitswork (image addition, Flat correction) / Astroart 5 and Regim (color calibration and Background processing) / PS CS3 (final processing)
spezifics : nothing
here you can find article to the dwarf galaxy (German and English):
